FLAMAIRE IS OWNED BY JP BURNERS, WE ARE THE LARGEST MANUFACTURERS OF ETHNIC AND COMMERCIAL GAS BURNERS IN THE UK
JP1 SPIDER BURNER NATURAL GAS & LPG 1/4 BSP FEMALE THREAD UP TO 100,000 BTU
BURNER 260mm DIAMETER, COMBUSTION TUBE 75mm HIGH X 200mm OVERALL HEIGHT 125mm CAST IRON BURNER WITH BRASS CALIBRATED JETS

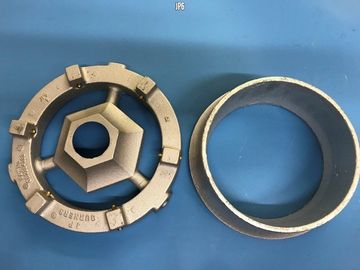

JP6 BURNER NATURAL GAS & LPG 1/4/ 3/8 OR 1/2 BSP FEMALE THREAD UP TO 100,000 BTU
BURNER 265mm DIAMETER, COMBUSTION TUBE 75mm HIGH X 200mm OVERALL HEIHGT 125mm CAST IRON
BURNER WITH BRASS CALIBRATED JETS
JP9 BURNER NATURAL GAS & LPG 1/4 3/8 OR 1/2 BSP FEMALE THREAD UP TO 120,000 BTU
BURNER 265mm DIAMETER, COMBUSTION TUBE 75mm HIGH X 200mm OVERALL HEIGHT 125mm CAST IRON
BURNER WITH BRASS CALIBRATED JETS
JP12 BURNER NATURAL GAS & LPG 1/4 3/8 & 1/2 BSP FEMALE THREAD UP TO 130,000 BTU
BURNER 265mm DIAMETER, COMBUSTION TUBE 70mm HIGH X 200mm OVERALL HEIGHT 100mm CAST IRON
BURNER WITH ANGLED BRASS JETS
JP21 BURNER NATURAL GAS & LPG 1/4 3/8 & 1/2 BSP FEMALE THREAD UP TO 145,000 BTU
BURNER 265mm DIAMETER, COMBUSTION TUBE 70mm HIGH X 200mm OVERALL HEIGHT 100mm CAST IRON
BURNER WITH ANGLED BRASS JETS
2 BAR BURNER NATURAL GAS & LPG 1/4 BSP FEMALE THREAD 265MM LONG X 100MM WIDE UP TO 32,000 BTU
STAINLESS STEEL SLOTTED BURNER TUBES , REMOVABLE FOR EASY CLEANING.
FIXED MILD STEEL HEADER WITH PREMIX TUBES
3 BAR BURNER NATURAL GAS & LPG 1/4 BSP FEMALE THREAD 305MM LONG X 160MM WIDE UP TO 70,000 BTU
STAINLESS STEEL SLOTTED BURNER TUBES, REMOVABLE FOR EASY CLEANING.
FIXED MILD STEEL HEADER WITH PREMIX TUBES
S17/3 17 INCH 3 LEG 32 JETS CHIP RANGE NATURAL GAS & LPG 3/4 BSP FEMALE BOTTOM ENTRY WITH BRASS JETS.
GAS UP TO 147,000 BTU
LPG UP TO 112,000 BTU
S14/3 14 INCH 3 LEG 24 JETS CHIP RANGE NATURAL GAS & LPG 3/4 BSP FEMALE BOTTOM ENTRY WITH BRASS
JETS
GAS UP TO 110,000 BTU
LPG UP TO 84,000 BTU

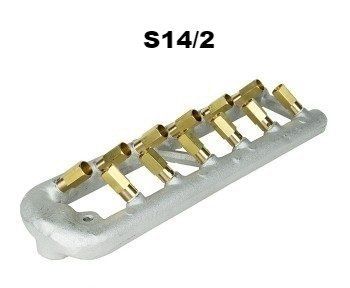

S14/2 14 INCH 2 LEG 12 JETS CHIP RANGE NATURAL GAS & LPG 1/2 BSP FEMALE BOTTOM ENTRY WITH BRASS
JETS
GAS UP TO 55,000 BTU
LPG UP TO 42,000 BTU

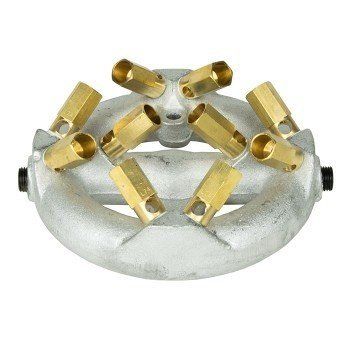

JP10 BURNER NATURAL GAS & LPG 1/2 BSP BOTTOM ENTRY WITH LARGE CALIBRATED BRASS JETS
GAS UP TO 55,000 BTU
LPG UP TO 50,000 BTU

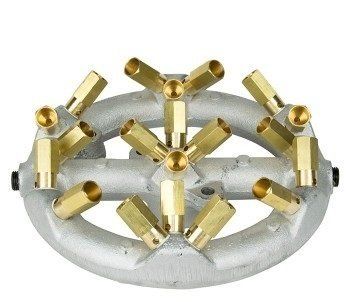

JP20 BURNER NATURAL GAS & LPG 1/2 & 3/4 BSP BOTTOM ENTRY WITH LARGE CALIBRATED BRASS JETS
GAS UP TO 110,000 BTU
LPG UP TO 100,000 BTU

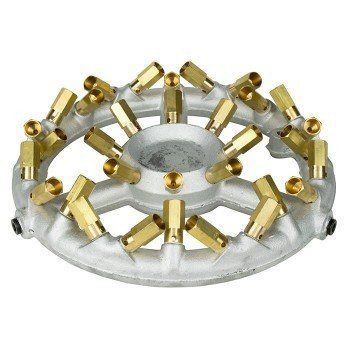

JP32 BURNER NATURAL GAS & LPG 1/2 & 3/4 BSP BOTTOM ENTRY WITH LARGE CALIBRATED BRASS JETS
GAS UP TO 160,000 BTU
LPG UP TO 176,000 BTU

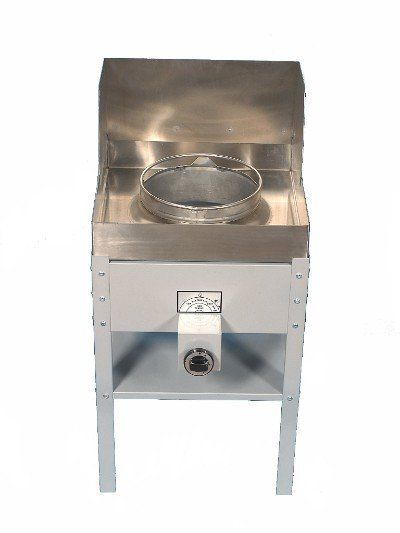

ONE HOLE CHINESE WOK COOKER FITTED WITH A JP21 JET ATMOSPHERIC VORTEX BURNER COMPLETE WITH SHIELDED PILOT SYSTEM AND FLAME FAILURE GAS CONTROL,SUITABLE FOR NATURAL GAS AND LPG.
POWERFUL ENOUGH FOR AN EXTRA UNIT IN A RESTAURANT OR TAKEAWAY KITCHEN ,HOTELS AND CATERING ESTABLISHMENTS AND OUTDOOR CATERING.
SPECIFICATION: 500mm X 500 mm WATER COOLED TOP WITH 300mm HEAVY DUTY CAST IRON WOK RING
NATURAL GAS OR LPG
STOCK-POT COOKER MANUFACTURED TO ROBUST HIGH SPECIFICATION THE UNIT IS DESIGNED FOR CATERING APPLICATIONS WHERE LARGER QUANTITIES OF FOOD ARE REQUIRED.
THE UNIT IS POWDER COATED FOR EASY CLEANING AND IS FITTED WITH A HEAVY DUTY CAST IRON PAN SUPPORT AND POWERED BY A JP21 PHOENIX TURBO BURNER OR A JP32 MULTI JET BURNER.
NATURAL GAS OR LPG
SPECIFICATION 500mm x 500mm OR 600mm x 600mm SQUARE

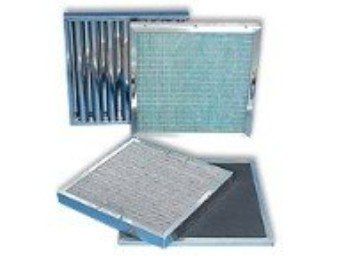

EXTRACTION FILTERS
DISPOSABLE FILTERS FIBRE GLASS 500mm X 500mm
DISPOSABLE FILTER FRAMES STAINLESS STEEL 500mm x 500mm
WASHABLE FILTER FRAMES ALUMINIUM 500mm x 500mm
WASHABLE FILTER FRAMES STAINLESS STEEL 500mm x 500mm
BAFFLE FILTERS STAINLESS STEEL500mm x 500mm
